The COR URBAN C16 aluminum window system was designed for use in buildings located in busy urban areas. Thanks to its quadruple glazing with four integrated EPDM gaskets and double 4-3/4” hidden sash construction – it provides unparalleled thermal and acoustic performance, as well as best in class weathertightness. Real world applications yield noise reduction results of up to 50dB, along with major energy savings and meaningful reductions in maintenance costs.
This aluminum sliding door system is the ultimate homage to modern minimalist design, allowing for maximum access to natural light and minimal obstruction or heat transfer. The COR Vision Plus' rollers are embedded in the frame, allowing for easy operation for very large openings for expansive views of up to 75 feet.
This sliding patio doors system allows for the possibility of interior and exterior corners without mullions, as well as in-wall pockets, which make the sliding panel system completely disappear when the aluminum doors are open.
With thermal breaks and a maximum glazing capacity of 55mm, the COR Vision Plus aluminum system can achieve a U-factor of 0.16 and acoustic insulation of up to 43dB, making it excellent for energy efficiency and as an insulating solution for residential and commercial applications.
Designed for medium and large openings up to 32 feet wide, the COR Vision system can accommodate up to 6 sashes on 3 rails. Maximum sash size is 98" tall by 118" wide. Maximum glazing thickness is 30mm. The bottom rollers of the COR Vision door are placed on the sash. System has interior and exterior corner capabilities that require no vertical mullion. This system can also be modified for a pocket door installation. The COR Vision system offers excellent performance with a U-value of 0.23 and acoustic insulation of 41 dB.
Vetrina Casement Windows are high quality, durable, easy to operate and maintain solutions for many architectural endeavors. Casement windows feature a 70mm (2-3/4”) frame, and utilize a hinge on one side to open outward. This allows the maximum amount of ventilation and unobstructed views. Multiple units may be combined in a master frame to create a window wall. Casement windows come in several functionality variants: fixed, side hung, and top hung. Available in slim, or heavy duty sash profiles - both offering top thermal performance, and security.
• Opening Direction: Outwards (towards exterior) • Application: Residential/Commercial Windows
A 2-3/8” window system constructed with precision-engineered aluminum extrusions, 1” polyamide rods, and EPDM moisture tightness gaskets. Modular and fully customizable for any project requirements in Tilt & Turn, Hinged, Casement, Fixed and other specialty variants.
PERFORMANCE & TECHNICAL SPECS: AAMA Rating @ 59” x 99”: AW-PG55 | AAMA Rating (reinforced): AW-PG90 Design Pressure: 55.14 psf | Design Pressure (reinforced): 90.23 psf Air Infiltration @ 6.24 psf: 0.06 cfm/ft² Air Exfiltration @ 1.57 psf: <0.01 cfm/ft² Water Resistance: 15.04 psf Uniform Load @ 82.71 psf: <0.01” Forced Entry: Type B - Grade 10 U-Value: 0.30 | STC: 48 dB Maximum Glazing Thickness: 1-13/16” Profile Thickness: 1/16” (1.6mm)
The COR-60 with Hidden Sash is a Euro-Groove window system for commercial and residential applications - with a visible surface of only about 2-1⁄2” from the outside. Available with straight and curved sashes. Optional concealed hinges and advanced security hardware.
PERFORMANCE & TECHNICAL SPECS: AAMA Rating @ 59” x 99”: AW-PG55 | AAMA Rating (reinforced): AW-PG90 Design Pressure: 55.14 psf | Design Pressure (reinforced): 90.23 psf Air Infiltration @ 6.24 psf: 0.06 cfm/ft² Air Exfiltration @ 1.57 psf: <0.01 cfm/ft² Water Resistance: 15.04 psf Uniform Load @ 82.71 psf: <0.01” Forced Entry: Type B - Grade 10 U-Value: 0.30 | STC: 48 dB Maximum Glazing Thickness: 1-13/16” Profile Thickness: 1/16” (1.6mm)
Our COR-70 Hidden Sash with Thermal Break is a unique Euro-Groove Window System that combines functionality, ease of operation, and attractive form factor. The hidden sash design is made possible by incorporating concealed gearings and specially designed hidden hardware in a modern ultra-slim frame.
PERFORMANCE & TECHNICAL SPECS: AAMA Rating @ 59” x 99”: AW-PG70 Design Pressure: 70.18 psf - 0.02” Air Infiltration @ 6.24 psf: <0.01 cfm/ft² Air Exfiltration @ 1.57 psf: <0.01 cfm/ft² Water Resistance: 15.04 psf (pass) Uniform Load @ 105.27 psf: <0.01” Forced Entry: Type B - Grade 10 U-Value: 0.27 | STC: 44 dB Maximum Glazing Thickness: 2-1/8” (55mm) Profile Thickness: 1/16” (1.5mm)
COR-70 CE is a highly versatile system designed for high thermal and acoustic performance, featuring minimalist clean design and aimed at maximum luminosity for window and door openings of virtually all sizes. Suitable for all climates.
PERFORMANCE & TECHNICAL SPECS: AAMA Rating @ 59” x 99”: AW-PG70 Design Pressure: 70.18 psf - 0.02” Air Infiltration @ 6.24 psf: <0.01 cfm/ft² Air Exfiltration @ 1.57 psf: <0.01 cfm/ft² Water Resistance: 15.04 psf (pass) Uniform Load @ 105.27 psf: <0.01” Forced Entry: Type B - Grade 10 U-Value: 0.25 | STC: 44 dB Maximum Glazing Thickness: 2-1/8” (55mm) Profile Thickness: 1/16” (1.5mm)
The COR-80 Hidden Sash with Thermal Break features a premium profile with excellent performance parameters. With 3-1/8” of frame depth, it responds admirably well to even the most severe climatic demands. Its exceptional thermal performance is attributed to a combination of thermal breaking zones and 1-3/8” & 1” polyamide strips distributed strategically throughout the system structure. COR80’s glazing capacity allows for triple glazing for unparalleled thermal performance in residential and commercial applications.
Profile thickness: 1/16” AAMA Rating: AW-PG80 Air Infiltration: 0.01 cfm/ft² Water resistanc: 12.11 psf U-Value: 0.15 Btu/h · ft2 · F STC: 46dB Maximum glazing thickness: 2”
With 3-1/8” of frame depth, the COR 80 Industrial System easily stands up to any force of nature, as well as extreme climatic conditions, such as high fluctuations in temperature and humidity. Its exceptional thermal performance is attributed to a combination of thermal breaking zones and polyamide strips optimally distributed throughout the structure. COR80 Industrial's glazing capacity makes it an ideal choice for windows and doors in multifamily and mixed-use application. Suitable for all climates.
PERFORMANCE & TECHNICAL SPECS: AAMA Rating @ 59” x 99”: AW-PG70 Design Pressure: 70.18 psf - 0.02” Air Infiltration @ 6.24 psf: <0.01 cfm/ft² Air Exfiltration @ 1.57 psf: <0.01 cfm/ft² Water Resistance: 15.04 psf (pass) Uniform Load @ 105.27 psf: <0.01” Forced Entry: Type B - Grade 10 U-Value: 0.25 | STC: 44 dB Maximum Glazing Thickness: 2-1/2” (65mm) Profile Thickness: 1/16” (1.5mm)
Sliding doors and large windows often serve as vital design components when space efficiency is a priority. Offering large unobstructed glass that maximizes the amount of light entering the interior, with minimal footprint. Vetrina’s sliding systems are suitable for large dimensions inviting maximum amounts of light with the minimum visible section of aluminum, and glass surface coverage of up to 94%. The 4200 Slider System offers a range of pocket systems, and insulating glazing packages. Single Rail and Dual Rail configurations available as well for balcony systems with 1, 2 & 4 hidden sashes.
• System Highlights: Curved or Straight Sashes, Pocket System Option • 45º Frame Joints, 45º & 90º Sash Joints • Rail Options: Mono-Rail, 2-Rail, and 3-Rail • System Options: 2, 3, 4 and 6 Sashes • Sliding Direction: Horizontal (Left/Right) • Application: Residential/Commercial Windows and Patio Doors • Glazing Packages and Finish Options • Mosquito Screens Available
The 4600 Lift and Slide Door System provides superior thermal insulation, compared to standard sliding doors. Standard central sash section of 4 21⁄64” (110mm) and the minimalist alternative of only 2” (50mm). Large sash dimensions make this system ideal for enclosing expansive areas, letting in more natural light. Aluminum framing while highly durable, is light enough for an easy and ultra smooth operation on a reinforced stainless steel rail. Instead of inserting a door into a wall, the whole wall becomes a window wall. The immediate benefit you will notice is how easy it is to open and close them. Huge unobstructed glass areas and an effortless sliding mechanism combine to make our Lift & Slide Doors the perfect solution for rooms with a view. Special roller system allows door panels to be lifted above a 3/16” flush track to roll easily when operating the door. A special gasket system, and multi-point locking mechanisms provide excellent weather resistance and security. The advanced door pane design is capable of handling extraordinarily large glass and sash sizes.
Vetrina’s Panoramic V-Wall Aluminum Bifold Door System is designed for use in both residential and commercial applications. Constructed from the highest grade 6063 T-5 thermal extrusion aluminum alloy, our bottom-running Bifold system can be configured to be outward- or inward-opening as specified, and includes a choice of “fully weathered” or “low level” sills, as well as a range of integrated locking solutions for all levels of access control and security. The Bifold system utilizes adjustable jambs technology for achieving a perfect fit.
The Millennium Plus 70 Door System is optimized for maximum and continuous structural loads, ready to handle the traffic of large commercial projects. It offers everything you’d expect from a premium aluminum door system, – strong and durable, very stylish and extremely versatile. The door can be fitted with either double or triple glazed IGUs up to 2-1/8” thick, or with a fully bonded aluminum panel, which conceals the door’s profiles and offers the appearance of a minimalist, single composite style slab.
• Open-in: Side hung 1 or 2 sashes • Allows for use as an emergency exit with anti-panic devices • Concealed hinges hardware available • Resistance to repeated opening and closing: 1,000,000 cycles • Dual tone capabilities • ADA Hardware
The Millennium Plus 80 Door System was meticulously designed for reliable operation in high traffic areas. Extra durable construction has been tested to withstand over a million open-close cycles without compromising the structural components. An ideal coplanar entry system with modern streamlined aesthetic and frame depth of 3-1/8” (80mm). Sturdy and versatile enough to handle most commercial applications. The door can be fitted with either double or triple glazed IGUs up to 2-1/2” thick, or with a fully bonded aluminum panel. Concealed hinges available.
• Open-in: Side hung 1 or 2 sashes • Allows for use as an emergency exit with anti-panic devices • Concealed hinges hardware available • Resistance to repeated opening and closing: 1,000,000 cycles • Dual tone capabilities • ADA Hardware
The TP-52 is the latest addition to the new generation of ultra-versatile stick-built facades comprised from a base system, and a range of mullions and transoms. The TP-52 system was designed with the intention to accommodate large and heavy glazing modules. The wide selection of profiles and union options allows for a variety of facade solutions, such as vertical, inclined, corner, and polygonal. The base profiles range from 5/8" to 10" for mullions, and 7/8" to 10" for the transoms.
The SG-52 is a traditional stick-built facade system suitable for a wide range of architectural applications. Comprised from a base system with a series of mullions and transoms, the TP-52 system was designed to accommodate large heavy glazing modules. With mullion profiles ranging from 5/8” to 10”, and transoms ranging from 7/8” to 10”, paired with its ability to utilize a variety of union options, the SG-52 system is a universal and versatile facade solution for vertical, inclined, corner, and polygonal applications.

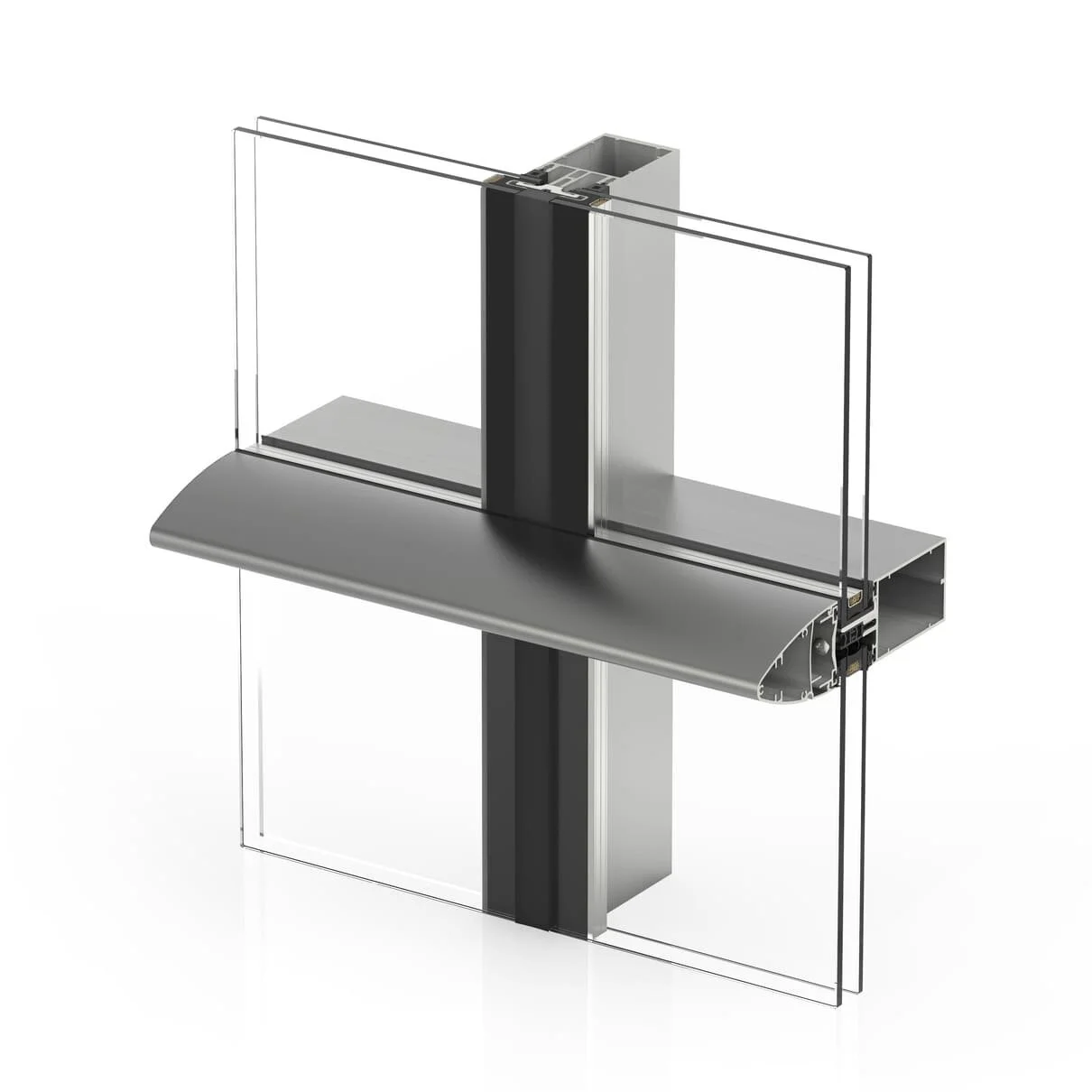

The TPH-52 is a hybrid system evolved through combining the best aspects of the TP 52 and the SG 52 systems. It maintains the pairing of the pressed cover on the horizontal gaskets, and uses clips and the U-profile for its vertical edges. The TPH-52 system is ready for large and heavy glazing modules. The wide selection of profiles and union options allows for a variety of facade solutions, such as vertical, inclined, corner, and polygonal, with the maximum glazing capacity of up to 2”. The base profiles range from 5/8" to 10" in mullions, and 7/8" to 10" in transoms.
The TPV-52 is a hybrid system that includes the best properties of the SG-52 and TP-52 systems. It’s based on combining the pressure cover on the horizontal gaskets, with the glazing being fixed using special clips and an additional U profile on its vertical edges. The TPV-52 system is uniquely suited for large and heavy glazing modules. The wide range of profiles and union options allows for a variety of facade solutions, such as vertical, inclined, corner, and polygonal, with the maximum glazing capacity of up to 2”. The base profiles range from 5/8" to 10" in mullions, and 7/8" to 10" in transoms.
The ST-52 is a versatile curtain wall facade system suitable for a wide range of architectural applications. A wide range of mullions and transoms work in tandem with the base system to accommodate large and heavy glazing modules. With mullion profiles ranging from 5/8” to 10”, and transoms ranging from 7/8” to 10”, paired with its ability to utilize a variety of union options, the ST-52 system is a universal and versatile facade solution for vertical, inclined, corner, and polygonal applications.
Our SST-52 Facade System is the ideal curtain wall solution for any architectural application. A wide range of mullions and transom options ensure compatibility with large and heavy glazing modules. With mullion profiles ranging from 5/8” to 10”, and transoms ranging from 7/8” to 10”, paired with its ability to utilize a variety of union options, the SST-52 system is a universal and versatile facade solution for vertical, inclined, corner, and polygonal applications.
EQUITY is a revolutionary new facade system with a visible interior section of less than 3/4” on both mullions and transoms. Thanks to the transoms and mullions being equal size, the EQUITY facade offers a modern flush assembly, which results in a clean and uniform view from the outside, allowing maximum amounts of light into the building. EQUITY Facade system can utilize combinations of mullions and transoms from the following systems: TP 52, SG 52, TPH 52, TPV 52, ST 52 and SST 52.
Vetrina’s Commercial Entrance Systems are constructed of extruded 6063-T6 aluminum alloy profiles with 0.125” nominal wall thickness for ultimate longevity and durability. They offer reliable solutions for high traffic commercial spaces, and are backed by our limited lifetime warranty. Commercial aluminum entrance doors can accommodate a variety of custom hardware for extended functionality and increased security. Our entrance door systems are performance tested and meet and exceed ASTM E 283 and 330 standards. For those located in hurricane zones we offer hurricane resistant entrance door systems as well.
• Accepts 1⁄4” or 1” Glazing Infills • Interlocking Corner Block Construction • Offset Pivots, Butt Hinges, and Continuous Geared Hinges • Surface Mounted or Concealed Overhead Closer Configuration • A wide range of anodized and powder coat finishes available
Storefront Framing Systems designed for low-rise applications. Snap-together profiles for increased productivity and quality control with perimeter profiles with full-depth pockets.
Vetrina is partnering with B-PRO Safeguard to deliver state of the art blast-proof window and door systems, designed to meet the Department of Defense UFC 4-10-01 (2007) AT/FP criteria, and to provide the U.S. military and critical infrastructure projects with the most advanced and cost-effective protective glazing systems on the market.
Capabilities: Tilt & Turn Windows • Turn Only (Side Hung) Windows
The COR URBAN C16 aluminum window system was designed for use in buildings located in busy urban areas. Thanks to its quadruple glazing with four integrated EPDM gaskets and double 4-3/4” hidden sash construction – it provides unparalleled thermal and acoustic performance, as well as best in class weathertightness. Real world applications yield noise reduction results of up to 50dB, along with major energy savings and meaningful reductions in maintenance costs.
PERFORMANCE & TECHNICAL SPECS:
U-Value: 0.21 Btu/h·ft2·F
Design Pressure: 62.4 lb/ft3
Water Resistance: 12.5 lb/ft3
U-Value: 0.30
STC: 50 dB
Quadruple EPDM Gasket
Downloads:
CAD Drawing
