Capabilities: Aluminum Sliding Door

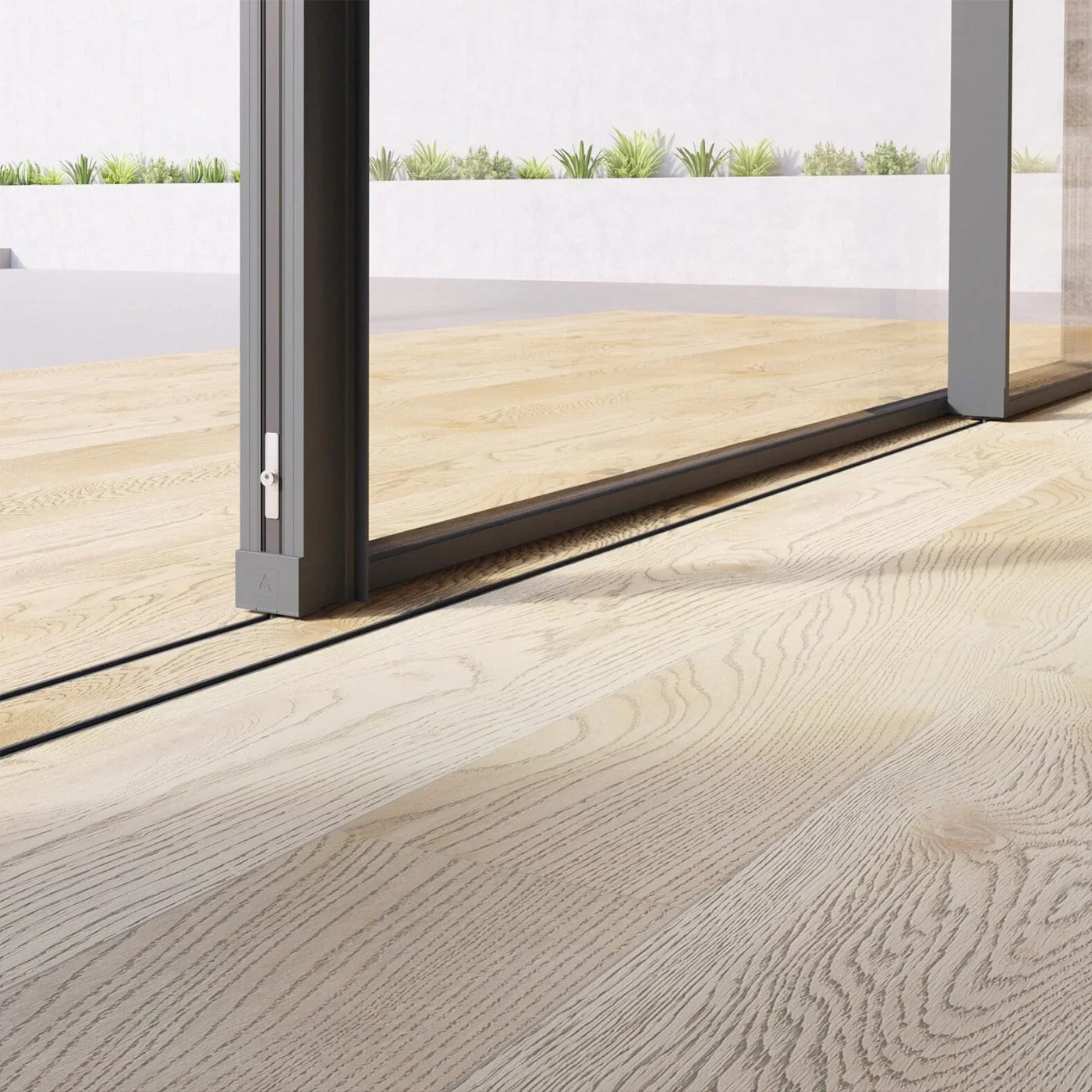

This aluminum sliding door system is the ultimate homage to modern minimalist design, allowing for maximum access to natural light and minimal obstruction or heat transfer. The COR Vision Plus' rollers are embedded in the frame, allowing for easy operation for very large openings for expansive views of up to 75 feet.

This sliding patio doors system allows for the possibility of interior and exterior corners without mullions, as well as in-wall pockets, which make the sliding panel system completely disappear when the aluminum doors are open.

With thermal breaks and a maximum glazing capacity of 55mm, the COR Vision Plus aluminum system can achieve a U-factor of 0.16 and acoustic insulation of up to 43dB, making it excellent for energy efficiency and as an insulating solution for residential and commercial applications.

Downloads:
Maintenance Guide | CAD Drawing | Installation Guide

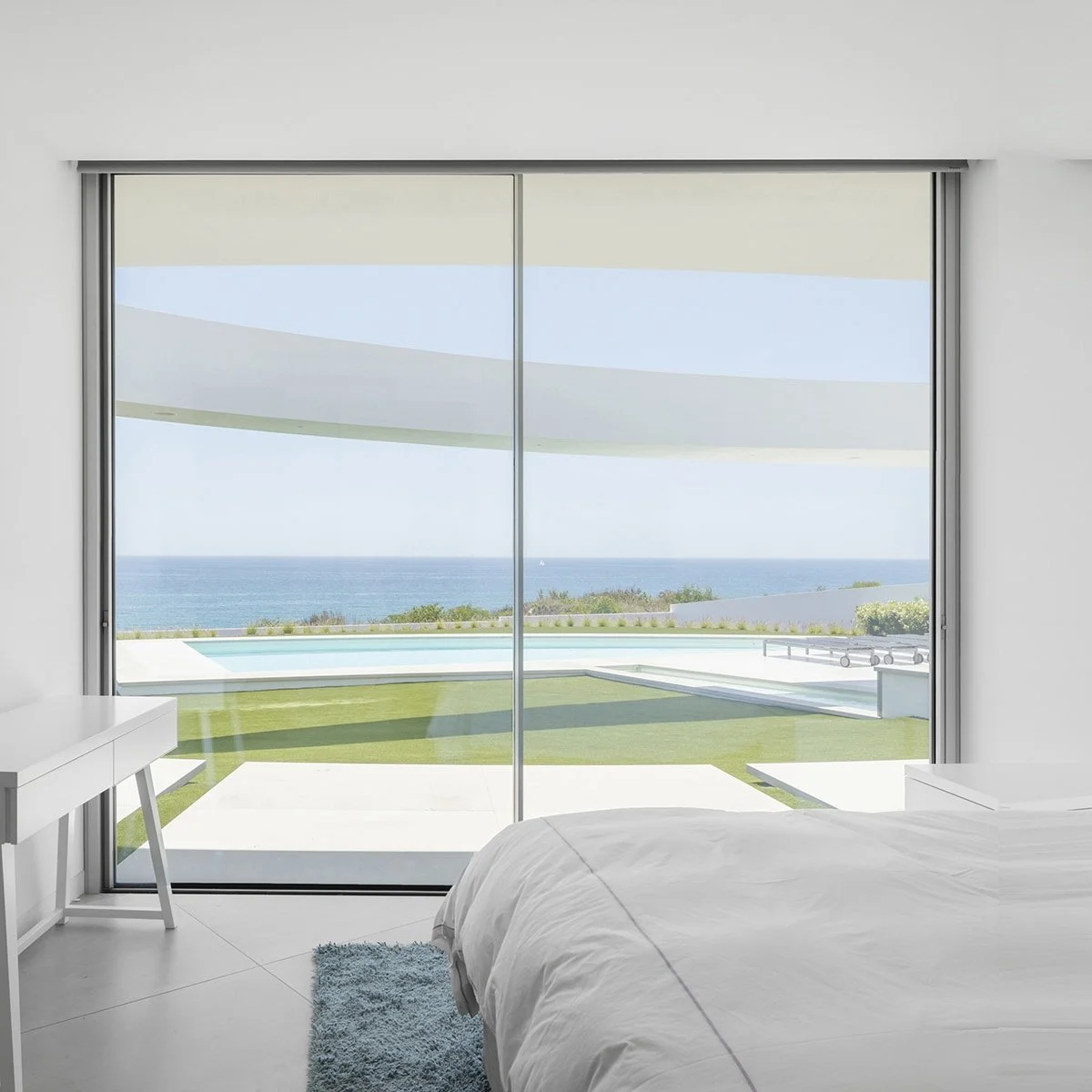

Capabilities: Sliding Doors

Designed for medium and large openings up to 32 feet wide, the COR Vision system can accommodate up to 6 sashes on 3 rails. Maximum sash size is 98" tall by 118" wide. Maximum glazing thickness is 30mm. The bottom rollers of the COR Vision door are placed on the sash. System has interior and exterior corner capabilities that require no vertical mullion. This system can also be modified for a pocket door installation. The COR Vision system offers excellent performance with a U-value of 0.23 and acoustic insulation of 41 dB.

Downloads:
Maintenance Guide | CAD Drawing | Installation Guide

Capabilities: Slider Windows • Sliding Doors

Sliding doors and large windows often serve as vital design components when space efficiency is a priority. Offering large unobstructed glass that maximizes the amount of light entering the interior, with minimal footprint. Vetrina’s sliding systems are suitable for large dimensions inviting maximum amounts of light with the minimum visible section of aluminum, and glass surface coverage of up to 94%. The 4200 Slider System offers a range of pocket systems, and insulating glazing packages. Single Rail and Dual Rail configurations available as well for balcony systems with 1, 2 & 4 hidden sashes.

• System Highlights: Curved or Straight Sashes, Pocket System Option
• 45º Frame Joints, 45º & 90º Sash Joints
• Rail Options: Mono-Rail, 2-Rail, and 3-Rail
• System Options: 2, 3, 4 and 6 Sashes
• Sliding Direction: Horizontal (Left/Right)
• Application: Residential/Commercial Windows and Patio Doors
• Glazing Packages and Finish Options
• Mosquito Screens Available

Downloads:
Spec Sheet | CAD Drawing | Installation Video
